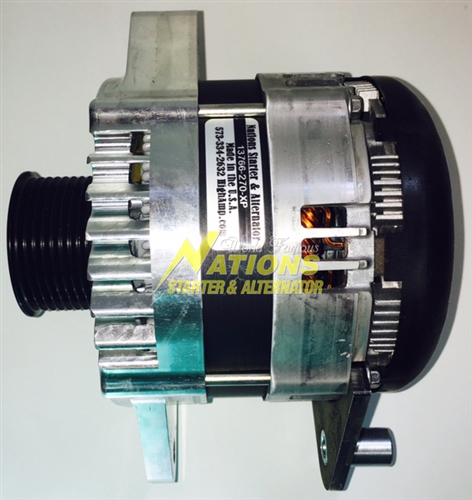

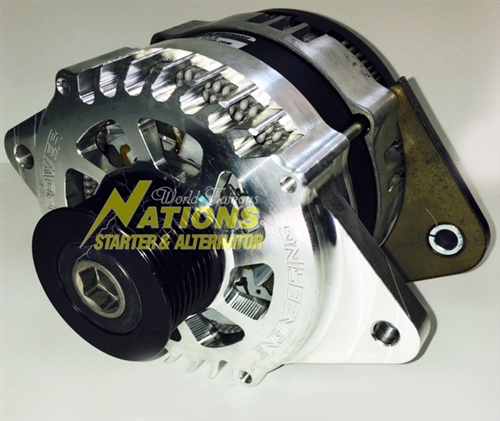

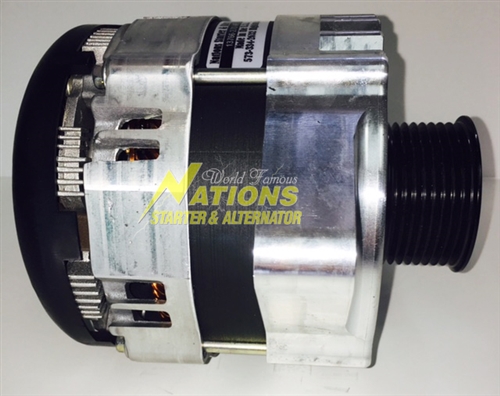

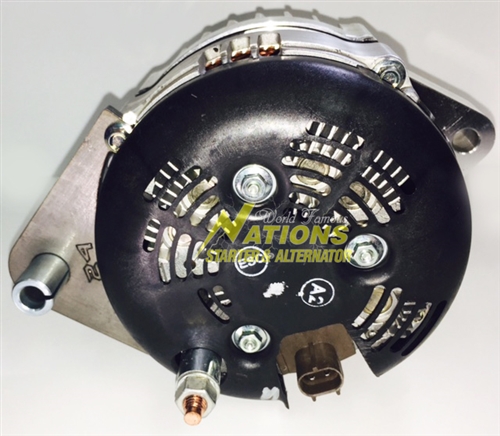

13302-270XP High Amp Alternator for 1994-1998 Dodge Ram Truck 5.9L Turbodiesel
13302-270XP High Amp Alternator for 1988-1994 Dodge Ram Truck 5.9L Turbodiesel

Alternate Views:
Fits the Following Applications:

94-98 Dodge Ram 5.9L I6 Cummins Turbodiesel
Price: $749.95

Price with Selected Options: $749.95


Product Code: 13302-270XP


Alternator:
Color Options


Cable Kit Upgrade


Warranty



Qty:
DESCRIPTION SPECIFICATIONS YEAR FITMENTS


PRODUCT FEATURES

Description

The Denso Large Case Hairpin 270 XP series alternator is a component of a next generation high efficiency, severe duty charging system specifically engineered for Nations. This system consists of a 270 Amp alternator and internal regulator. The alternator has a maximum efficiency in excess of 75 percent. The rectifier is mounted onboard the alternator and consists of 12 50 amp press fit diodes. The brush holder assembly and slip ring are environmentally protected and the bearings are heavy-duty, oversized premium bearings. The alternator housings are precision-machined cast aluminum and all components are of OEM quality. All major components being carefully chosen for maximum performance and reliability.

Technology

This new charging system features an advanced proprietary stator winding of a new design that maximizes efficiency with near 80 percent sectional density of the winding coupled with very low coil resistance. This gives the alternator maximum low speed output, as well as a 90% reduction of magnetic pulsation with the stator windings built in cancel circuit to minimize electrical noise. The internal regulator is a proprietary design advanced multifunction digital regulator that completely integrates into the vehicles PCM through the OEM wiring harness to retain all vehicle specific functions such as internal temperature compensation, lamp terminal monitoring, load response control, and alternator load factor.

Mounting

The Denso Large Case Hairpin 270 XP series alternator is specially designed to mount directly in the OEM mounting location with no modification. All electrical connections shall be in the original locations. The alternator features a custom machined drive pulley for increased output at idle speeds and retains OEM belt length. The pulley is 8 Groove Hard Anodized 6061 Billet Aluminum and hard anodized coating for wear resistance and durability.

Performance

The Medium Case Denso OEM alternator is rated at 100 amps with 65 amps at idle. Engine idle is ~500 RPMs. The vehicle needs a maximum of 60 amps to supply existing electrical loads with all accessories on leaving little room for additional accessories. The supplied alternator will supply an additional 95 amps of available output at hot idle output, and 105 amps additional at cold idle output, and up to 150 amps at highway speeds.

Durability

The Denso Large Case Hairpin 270 XP series alternator is manufactured to the highest quality standards in the USA with premium USA made or sourced components for the highest quality possible. All of our high output alternator parts are carefully chosen for the maximum durability, dependability and proven performance in the field.
