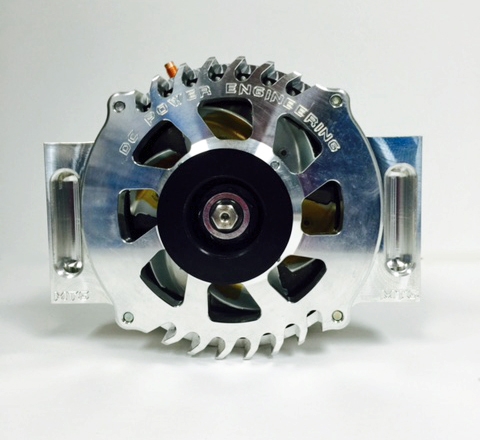

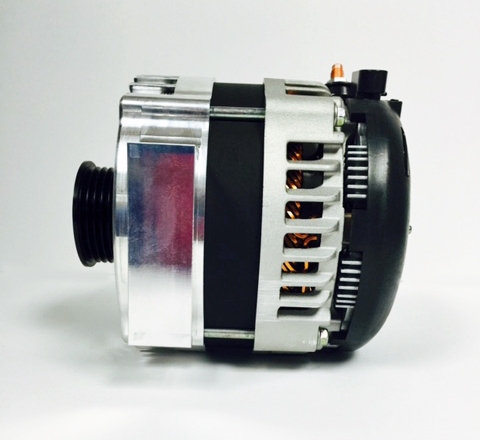

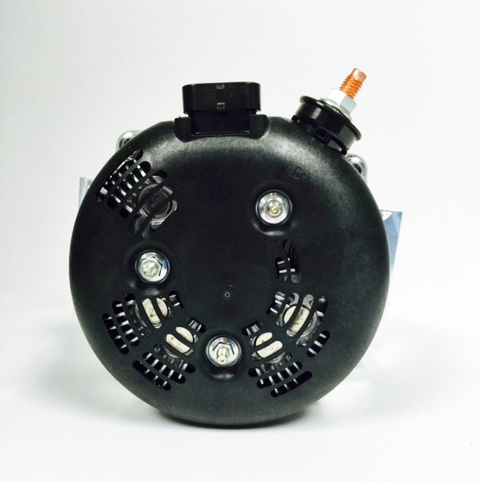

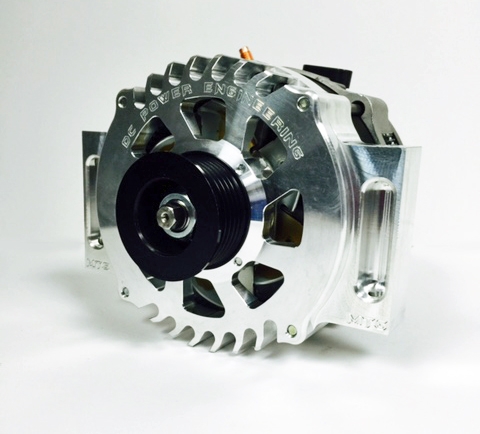

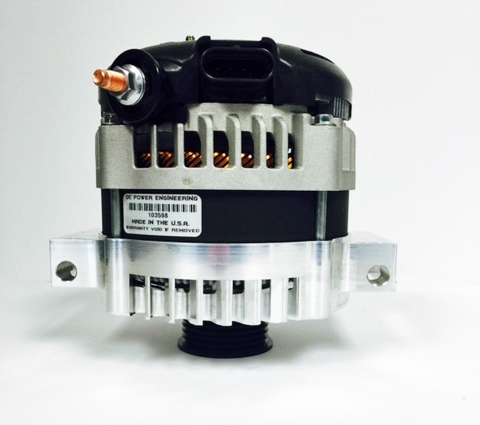

13944-270XP High Amp Alternator for Ecotec Chevrolet, Oldsmobile, Pontiac, Saturn
13944-270XP High Amp Alternator for Ecotec Chevrolet, Oldsmobile, Pontiac, Saturn

Alternate Views:
Price: $749.95

Price with Selected Options: $749.95


Product Code: 13944-270XP


Alternator:
Color Options


Cable Kit Upgrade


Warranty



Qty:
DESCRIPTION SPECIFICATIONS YEAR FITMENTS


PRODUCT FEATURES
Our XP series high-output alternators are the ultimate upgrade when you need the absolute biggest and most sophisticated high output alternator on the planet. All of our XP series alternators are designed for one purpose, brute force idle output. When you need the most extreme idle output with the most sophisticated integrated alternator-monitoring system to prevent thermal failures is where the XP alternator delivers. Every Nations product we sell is held to the strictest quality standards in the industry. We only use 100% brand new USA made components along with one of the most rigorous testing before each individual alternator leaves our shop. Each XP series alternator comes standard with our custom hard-anodized billet aluminum pulley and 2-year replacement warranty. If you're looking for a significant overall increase in top end and idle output, the XP series alternator is your solution.

Quick Overview

Mounting Type Direct fit to OEM Mounting
Output Voltage 14.8
Idle Amperage 190
Hot Idle Amperage @ 200ºF 170
Max Amperage 270
Hot Max Amperage @ 200ºF 240
Pulley 5 Groove Hard Anodized 6061 Billet Aluminum
Doesn't affect vehicles PCM, Check Engine Light or Charge Light Yes - Direct plug-in OEM PCM Compliant
SKU 13944-270-XP
Stator Configuration 6 Phase Hairpin
Average A/C Ripple Current 3 Amps
Positive Output Stud Size 8MM x 1.25 Copper
Temperature Compensation Yes with 3-Step Thermal Protection
Rectifier 12 50 amp press fit diodes
Rectifier Heatsink Aluminum
Warranty Duration 2 Years
